Community Center

SITE: Cleveland, Ohio

YEAR: Undergrad Sophomore - 2016, Semester 2

UNIVERSITY: Kent State University

DURATION OF PROJECT: 2 months

The community center is designed with curves and has an expansive use of glass. The glass and curves allow for unique experiences among users.

site section.jpg

This community center is located in a small suburb outside of Cleveland, OH. The areas outside of Cleveland are mostly small suburban housing communities with the main roads having retail, groceries, and food. The community center will bring a space for these suburban communities to come workout and meet one another.

east elevation.jpg

Figure 1: East facade elevation

exploded axon.jpg

1

2

3

4

Floor Plans

North Arrow.png

The program includes the 1st-floor racquetball courts and indoor pool, 2nd-floor lockers, workout rooms, and an outdoor pool, 3rd-floor massage rooms, and a 4th-floor lounge.

ground floor plan.jpg

1st Floor

level 2 plan.jpg

2nd Floor

level 3.jpg

3rd Floor

level 4.jpg

4th Floor

section 2.jpg
west elevation.jpg

Figure 2: Traverse Section 1

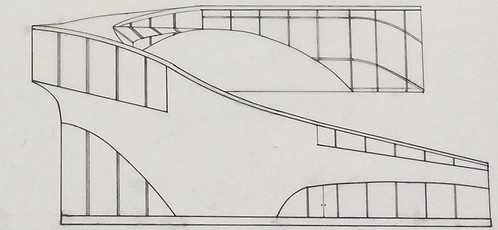

Figure 3: South Facade Elevation

section 3.jpg

Figure 4: Traverse Section 2 through outdoor pool


Figure 5: East facade showing 2nd floor outdoor pool

section 1.jpg

Figure 6: Longitudinal Section

IMG_5358 rotated.png

Figure 7: West Facade
